Description

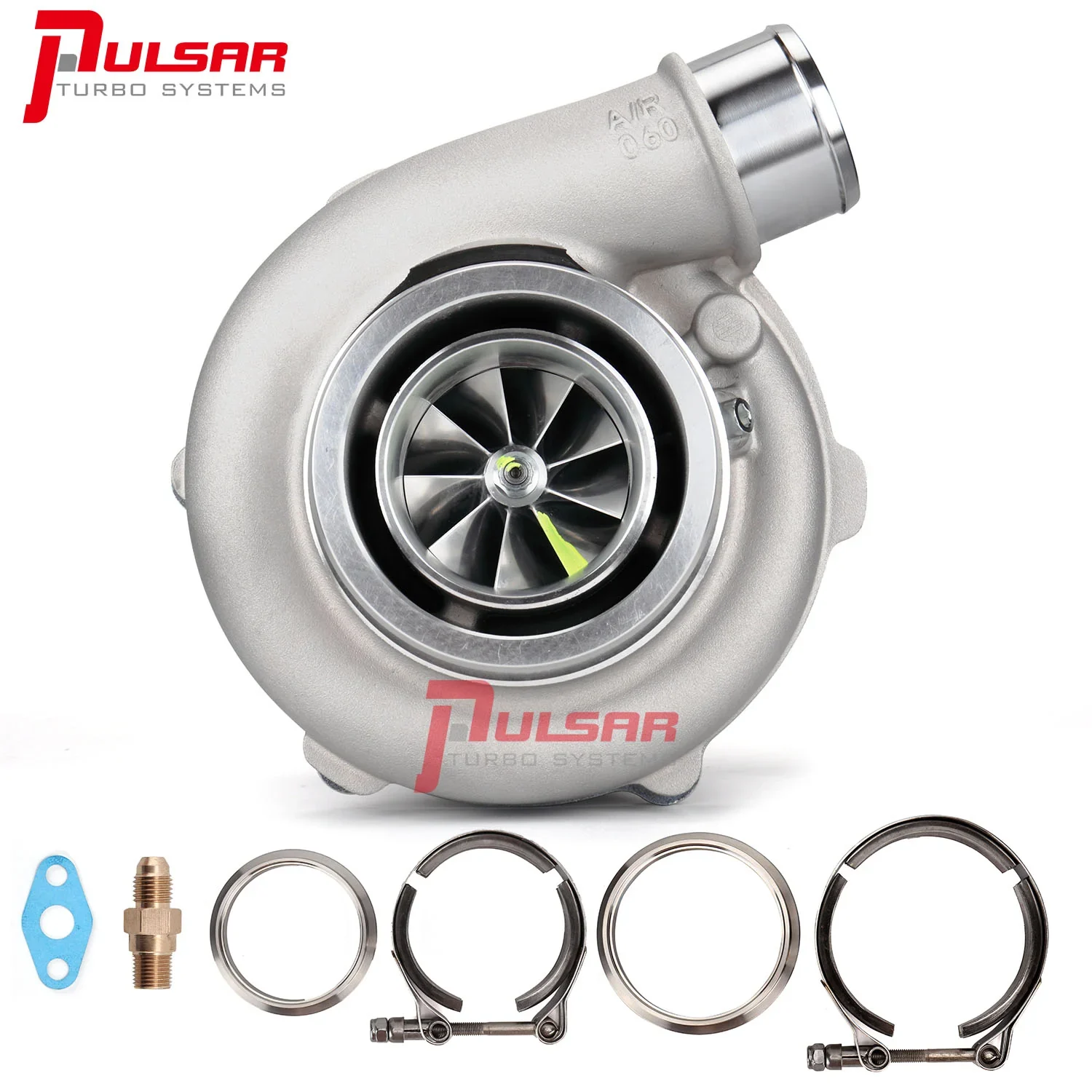

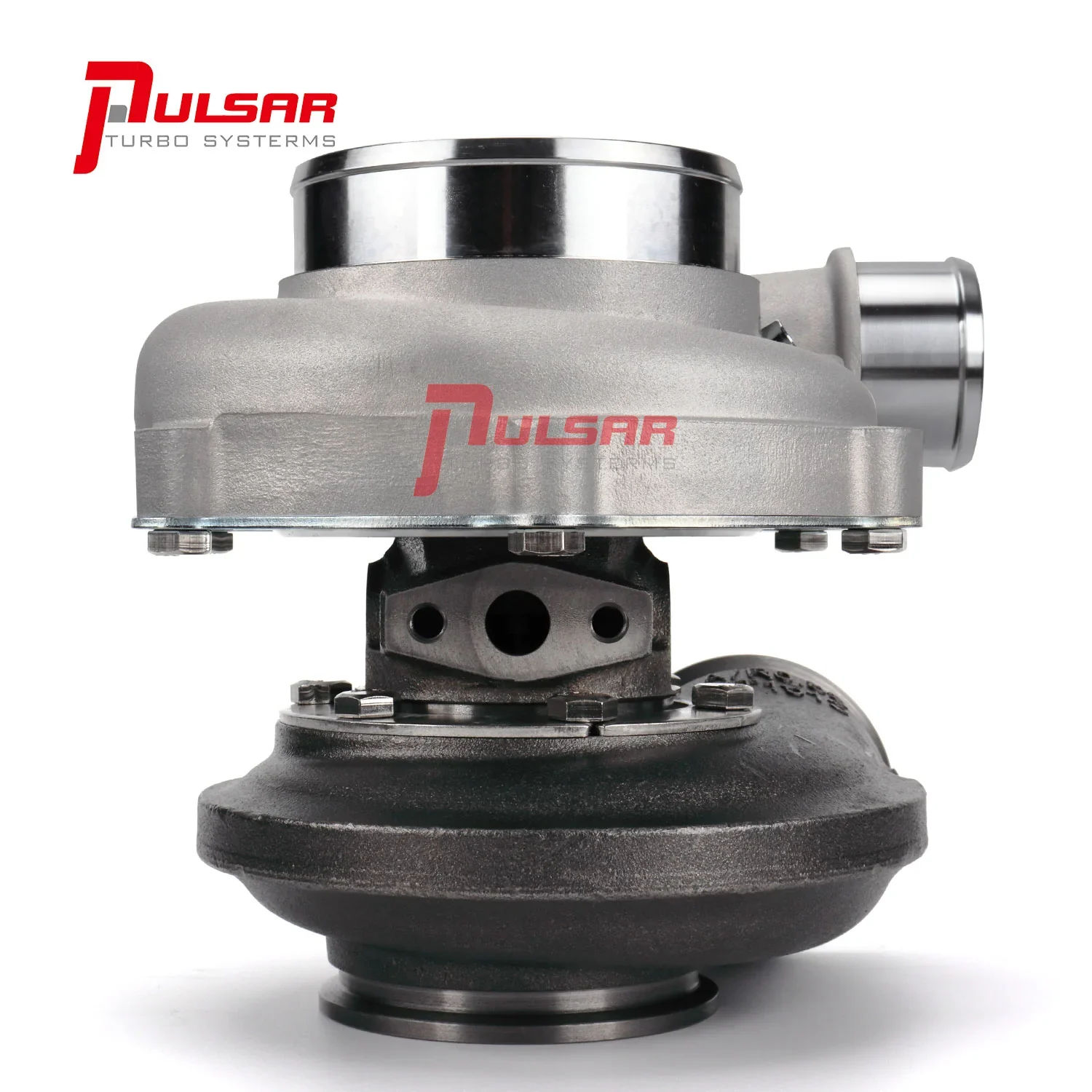

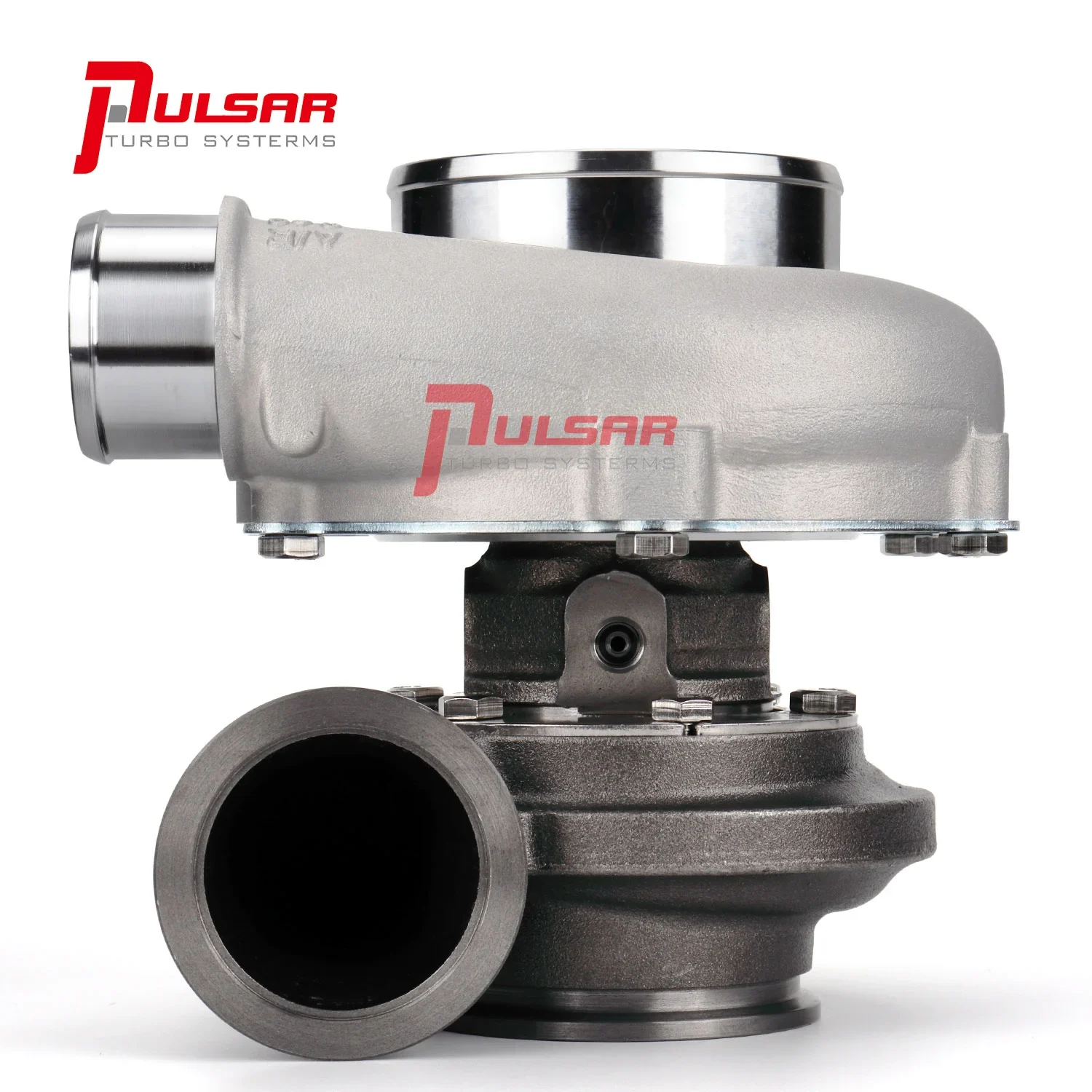

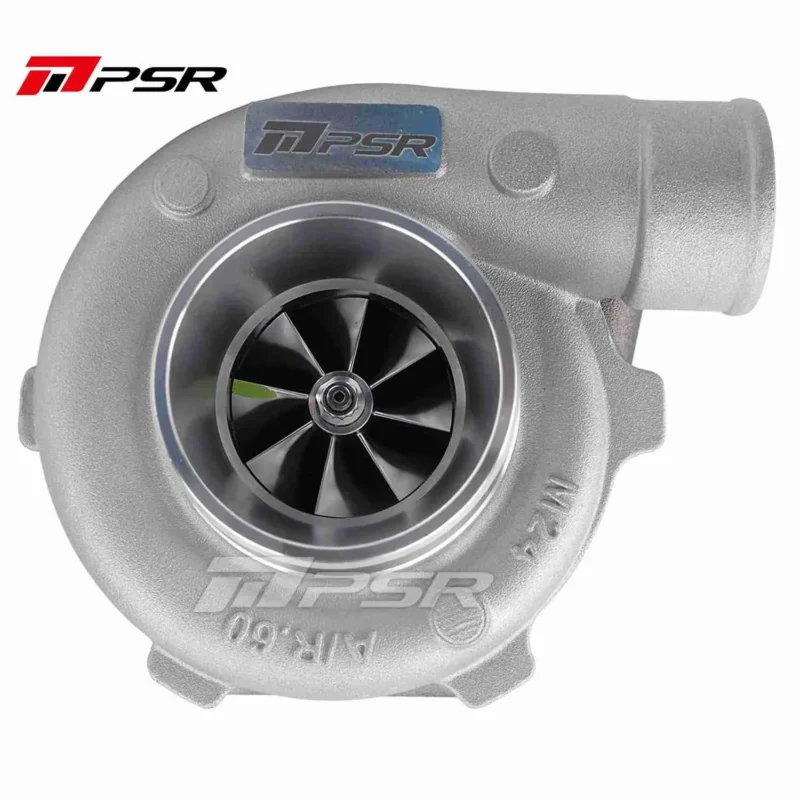

PULSAR Turbo PSR3076R GEN2 Turbocharger
- Dual Ceramic Ball Bearing System

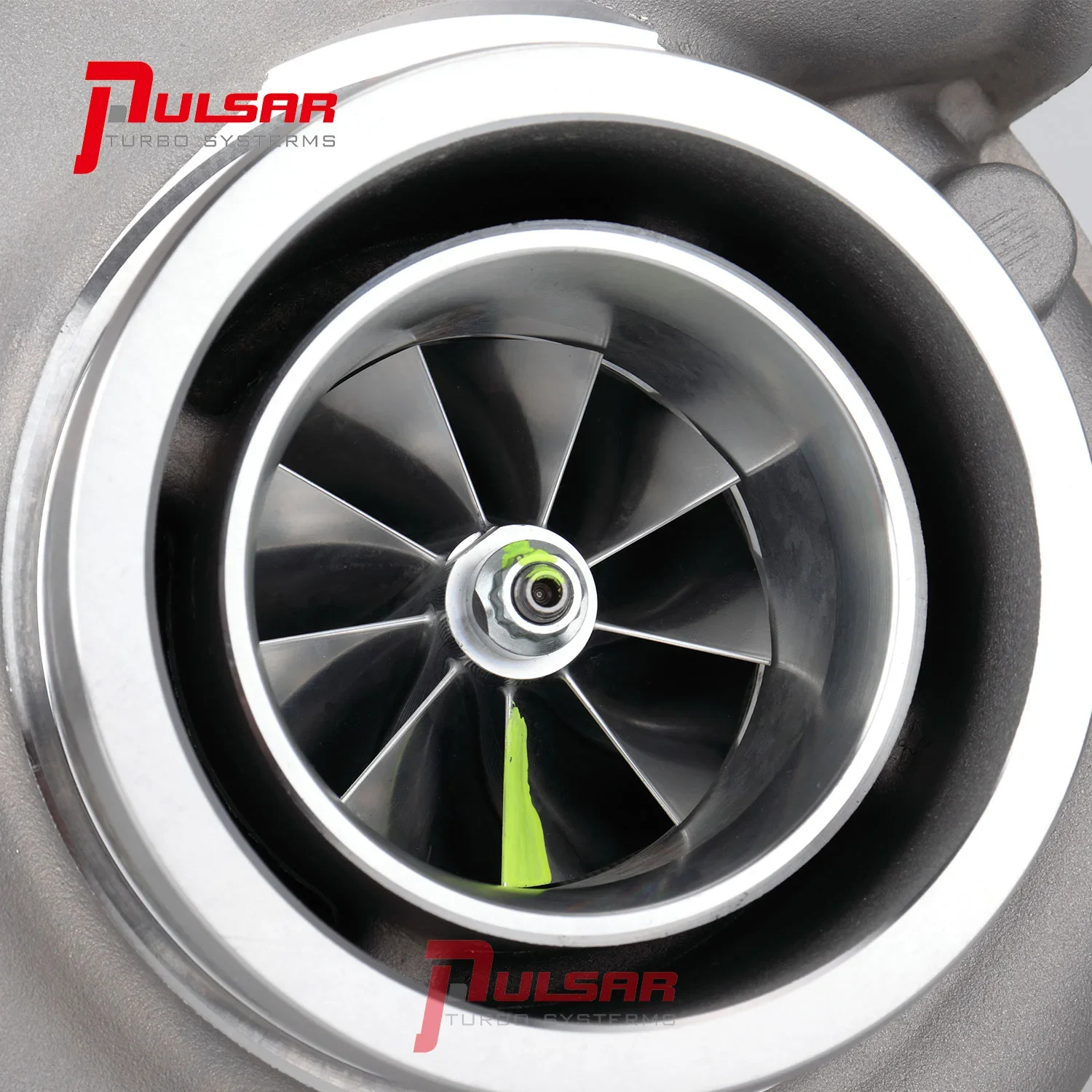

- 9 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
- Inconel 713c 10 Blade Turbine Wheel
- Gen2 Cover Integrated with the Speed Sensor Port

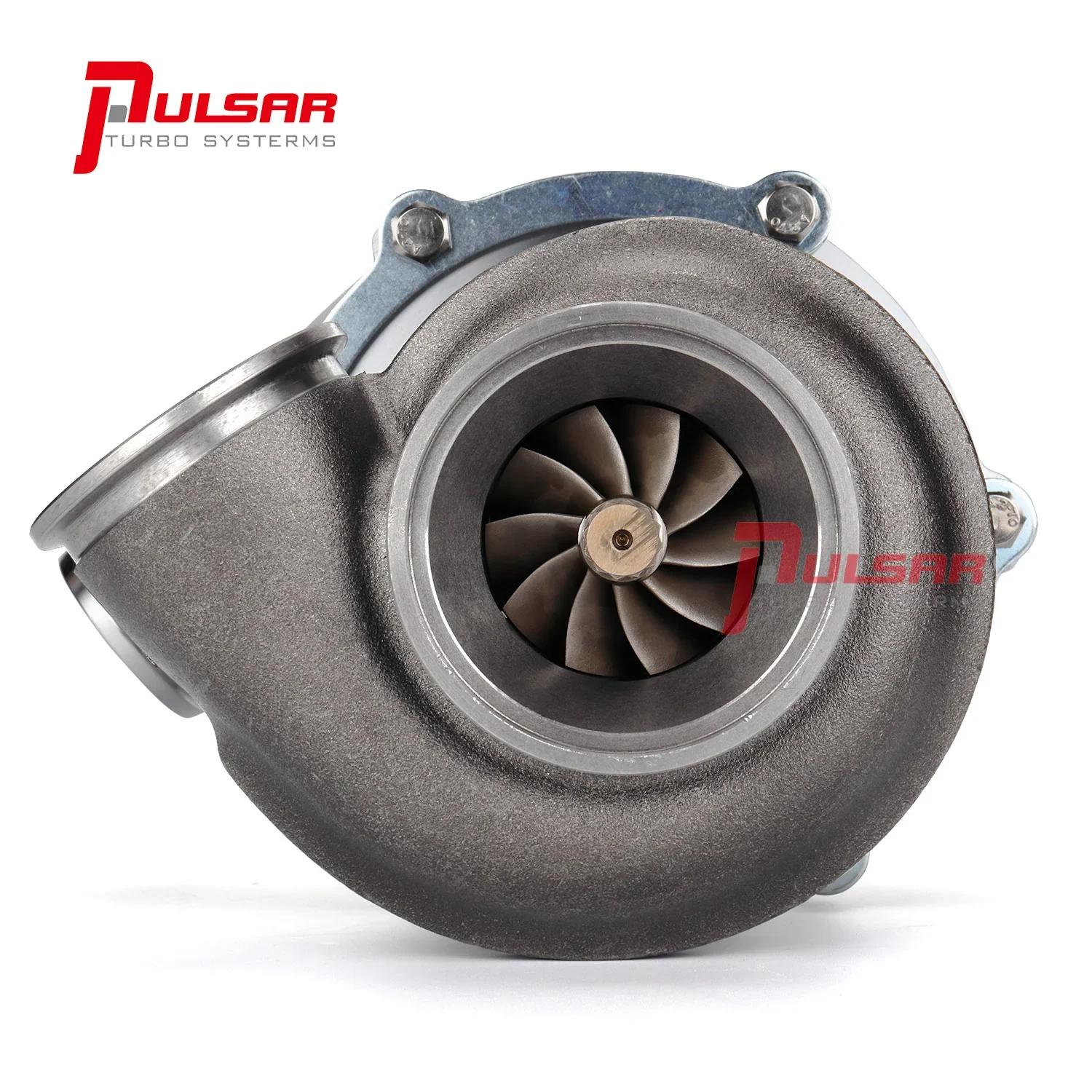

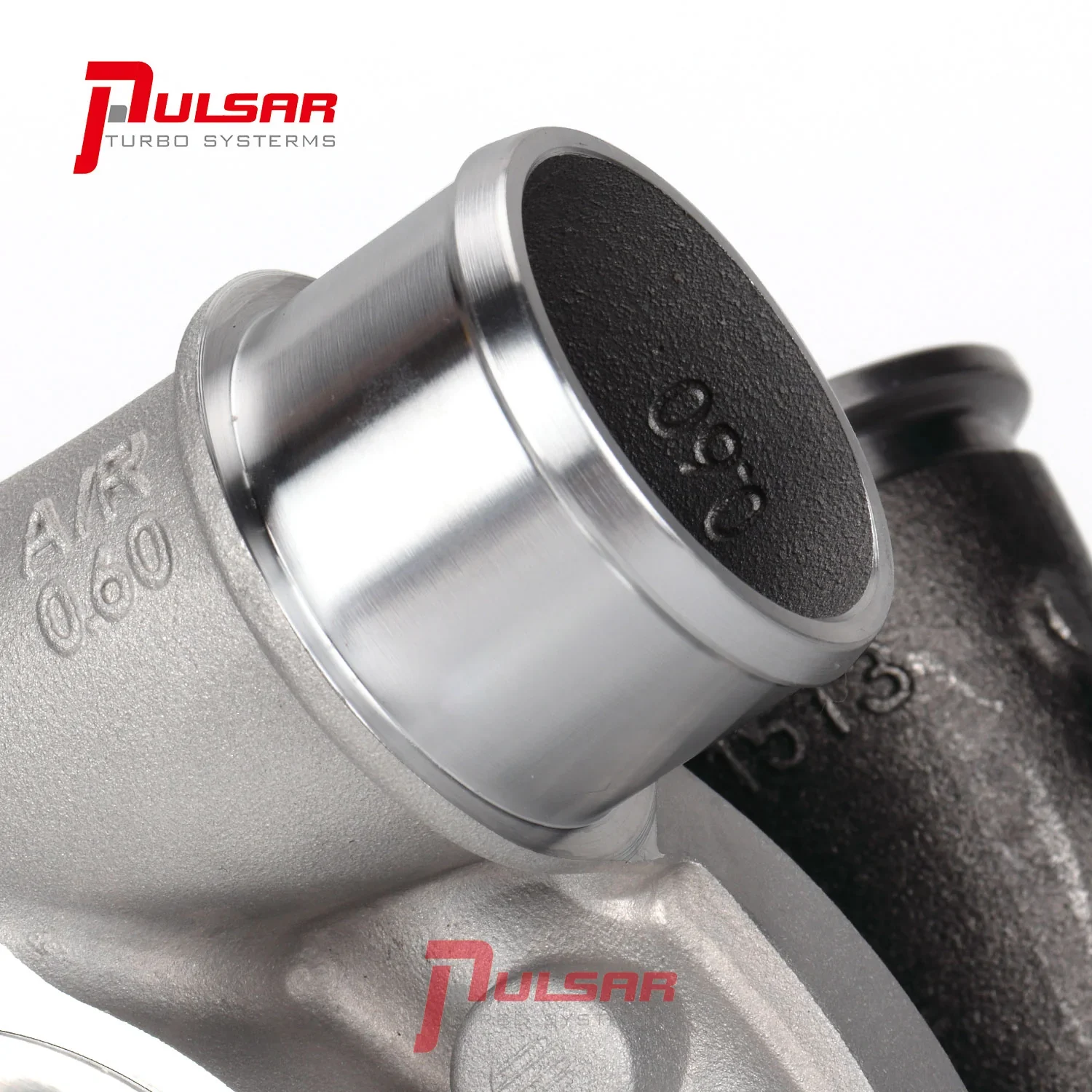

- 0.83 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet turbine housing In option
- V-Band Flange kit(s) for the exhaust housing included
- Max Air Flow rate: 65 lb/min, rated @ 750 FWHP
- Compressor Wheel: 58*76mm
- Turbine Wheel: 60*55mm
- Compressor Inlet: 4″ Hose
- Compressor Outlet: 2″ Hose
- Turbine Inlet: T3, T4 or 2″ V-Band
- Turbine Outlet: 3″ V-Band(3.55″OD)
- Oil Feed: -4 AN connect to the Oil Restrictor
- Oil Drain: Std T3 Flange
- Water In/Outlet: M14*1.5
We highly recommended running water cooling for better durability.
