Description

PULSAR PSR2860R GEN 2 Turbocharger

Dual ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion

-50*67mm 8 blade billet compressor wheel

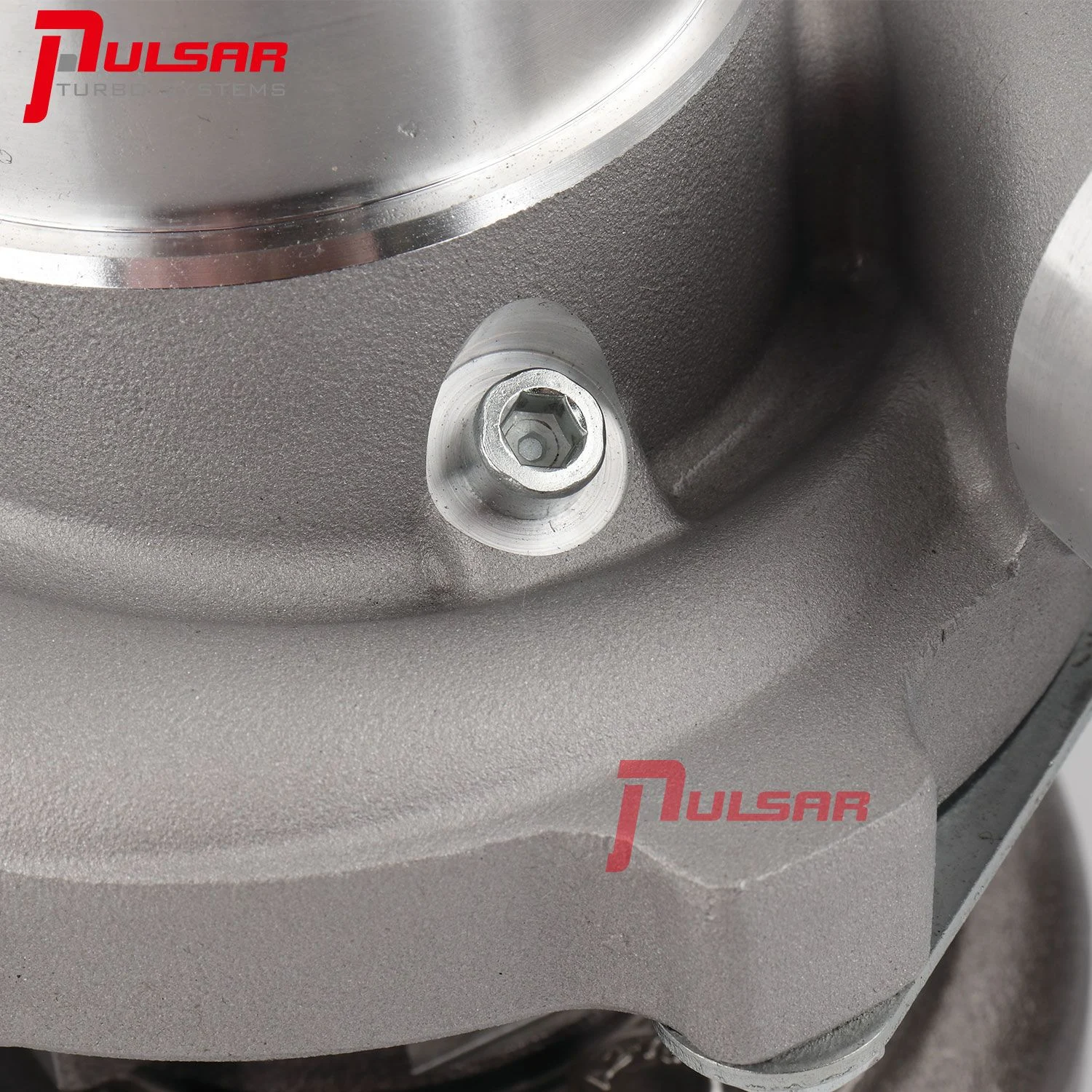

-Gen2 cover integrated with the speed sensor port

-0.64, 0.86A/R T25 Inlet, 5 Bolt Outlet, 0.82 A/R dual V-BAND stainless steel Housing in option

Description

• Compressor Wheel: 45.64/60.07/62mm
• Turbine Wheel: 54/47mm
• Compressor Inlet: 3″ Hose
• Compressor Outlet: 2″ Hose
• Turbine Inlet: T25 or 2.5″ V-Band
• Turbine Outlet: 5 Bolt or 3″ V-Band (3.55″ OD)
• Oil Feed: -4 AN connect to the Oil Restrictor
• Oil Drain: Std T3 Flange
• Water In/Outlet: M14*1.5

We highly recommended running water cooling for better durability.
