EVO 1-3 5SPD DRAG SET – INC SPOOL

0 Review(s)

£3,379.48

SKU: MT-EV3-5S4G-SPL-GA
Product by: PPG
3.125 / 2.031 / 1.470 / 1.080 / STD (SPOOL)

SHARE:

SKU MT-EV3-5S4G-SPL-GA Category Tags , , , Brand:

Description

MITSUBISHI EVO 1-3 1st-4th GEAR SET

DRAG SET – INC SPOOL

GEAR RATIO

  1. 3.125
  2. 2.031
  3. 1.470
  4. 1.080
  5. STD
  • INC – SPOOL
  • Product is rated at over 1000hp
  • Used to propel the fastest 4wd 4 cylinders on earth, this PPG product is rated at over 1000hp and far exceeds anything else available in the market for earlier model 4G63 powered FWD and 4WD cars.
  • Also popular amongst Rally, Circuit and Street builds with its reliability and ease of shifting, this is the ultimate upgrade for increased performance and reliability.

Technical Information

  • The gearbox bell housing snout needs to be internally machined to clear the outside of the larger EVO 4-9 clutch spline supplied.

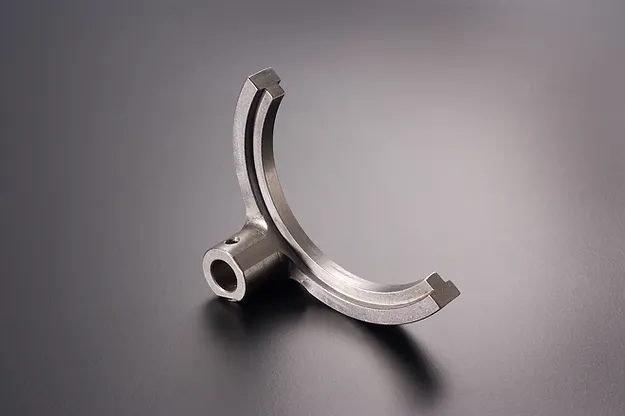

  • An OEM cast steel 1st/2nd selector fork should be used; double roll pinning both 1st/2nd and 3rd/4th forks to the selector rail is always good practice.
  • A 5th fork locator will be supplied to orientate the 5th selector fork if you choose not to run the OEM 5th gear.
  • The OEM top hat used with the PPG diff body will require a slight skim on the OD to ensure it clears the PPG 4th gear output once assembled.
  • Must use 3rd/4th rail with OEM part number MD749456
  • Fill with Motul 75w-140 Gear Competition Oil

Tags: , , ,

Additional information

Weight 14 kg
Dimensions 57 × 28 × 21 cm

Brand Information

  • PPG

Filter Data Information

  • Mitsubishi
