Description

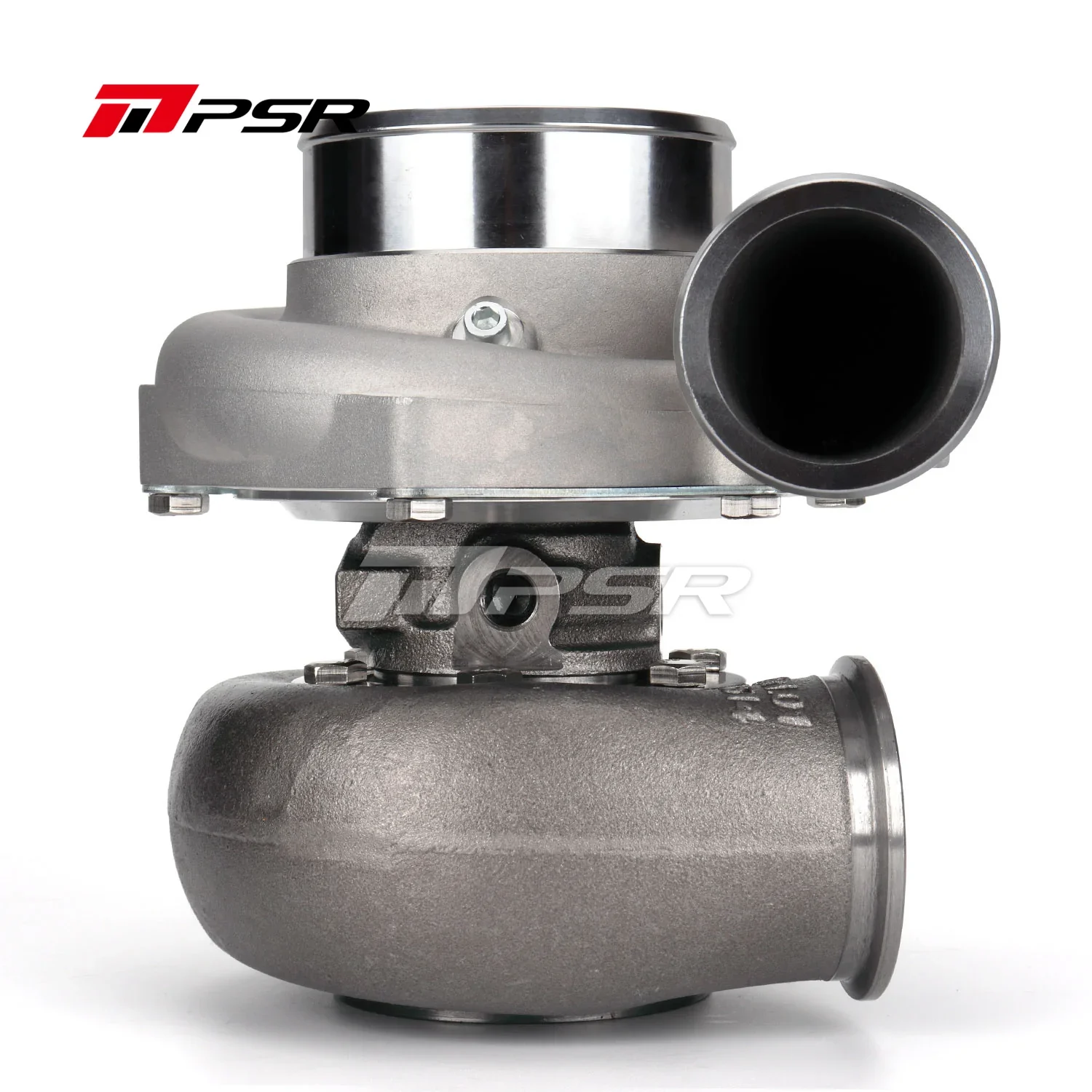

Pulsar PSR3584 Gen 3 Turbo

• Max Air Flow rate: ~90 lb/min, rated @ 1000 FWHP
• Compressor Wheel: 67*84mm
• Turbine Wheel: 74*66mm

• Dual Ceramic Ball Bearing System
• 10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
• Inconel 713c 10 Blade Turbine Wheel with High Horsepower
• Cover Integrated with the Speed Sensor Port
• 0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet, T4 0.82 V-Band outlet etc. turbine housings in option
• V-Band Flange kit(s) for the exhaust housing included
• Stronger Turbine Wheel for High flow

• • Compressor Inlet: 4.0” Hose
  • Compressor Outlet: 2.5” Hose
  • Turbine Inlet: T3, T4, or 2.5″ V-Band
  • Turbine Outlet: 3″ V-Band (3.55″OD)
  • Oil Feed: -4 AN connect to the Oil Restrictor
  • Oil Drain: Std T3 Flange
  • Water In/Outlet: M14*1.5
  • We highly recommended running water cooling for better durability

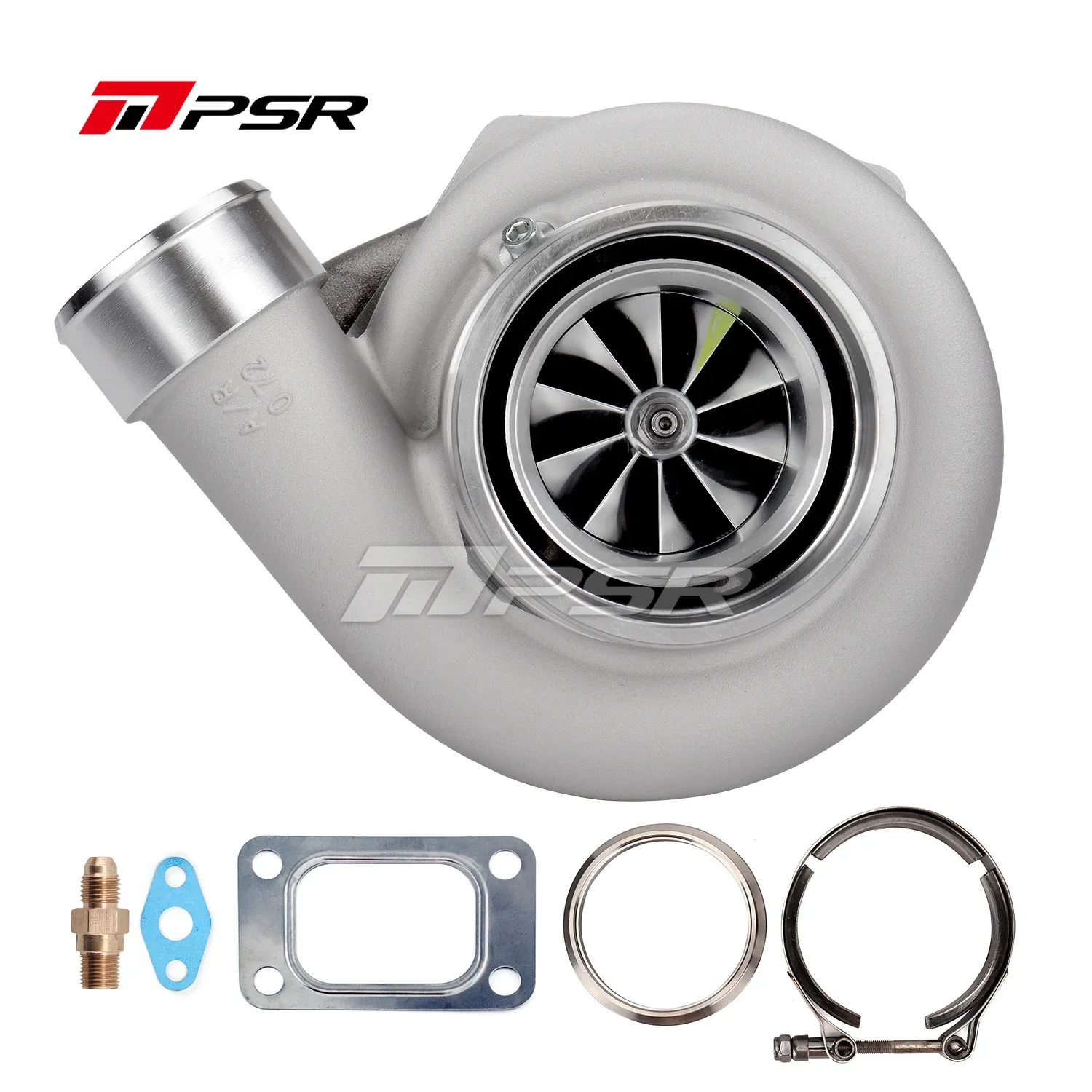

  • Comes with Inlet flange and clamp (DVB) and Outlet flange and clamp
