Description

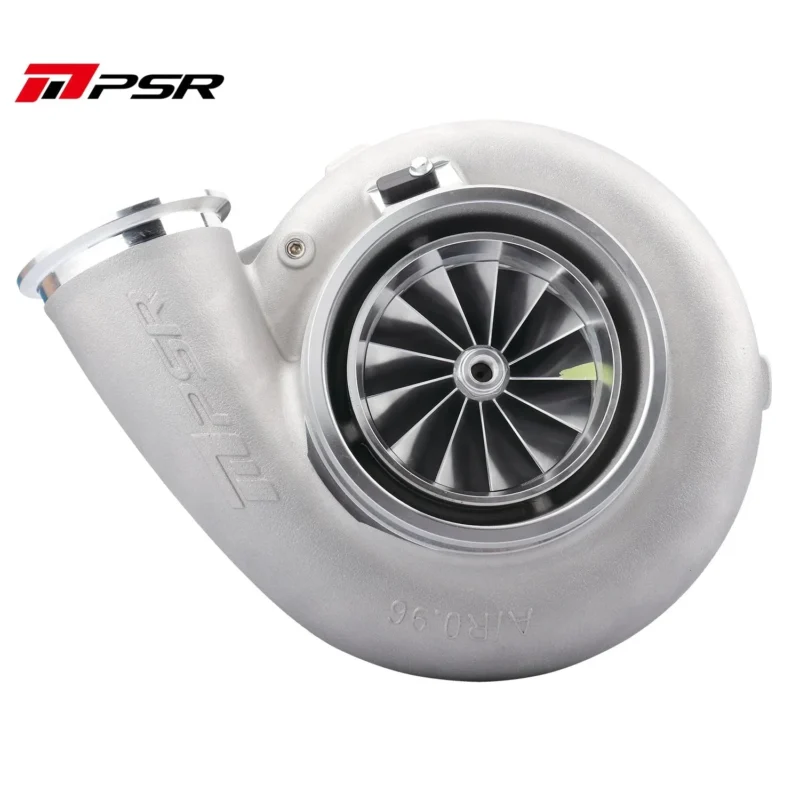

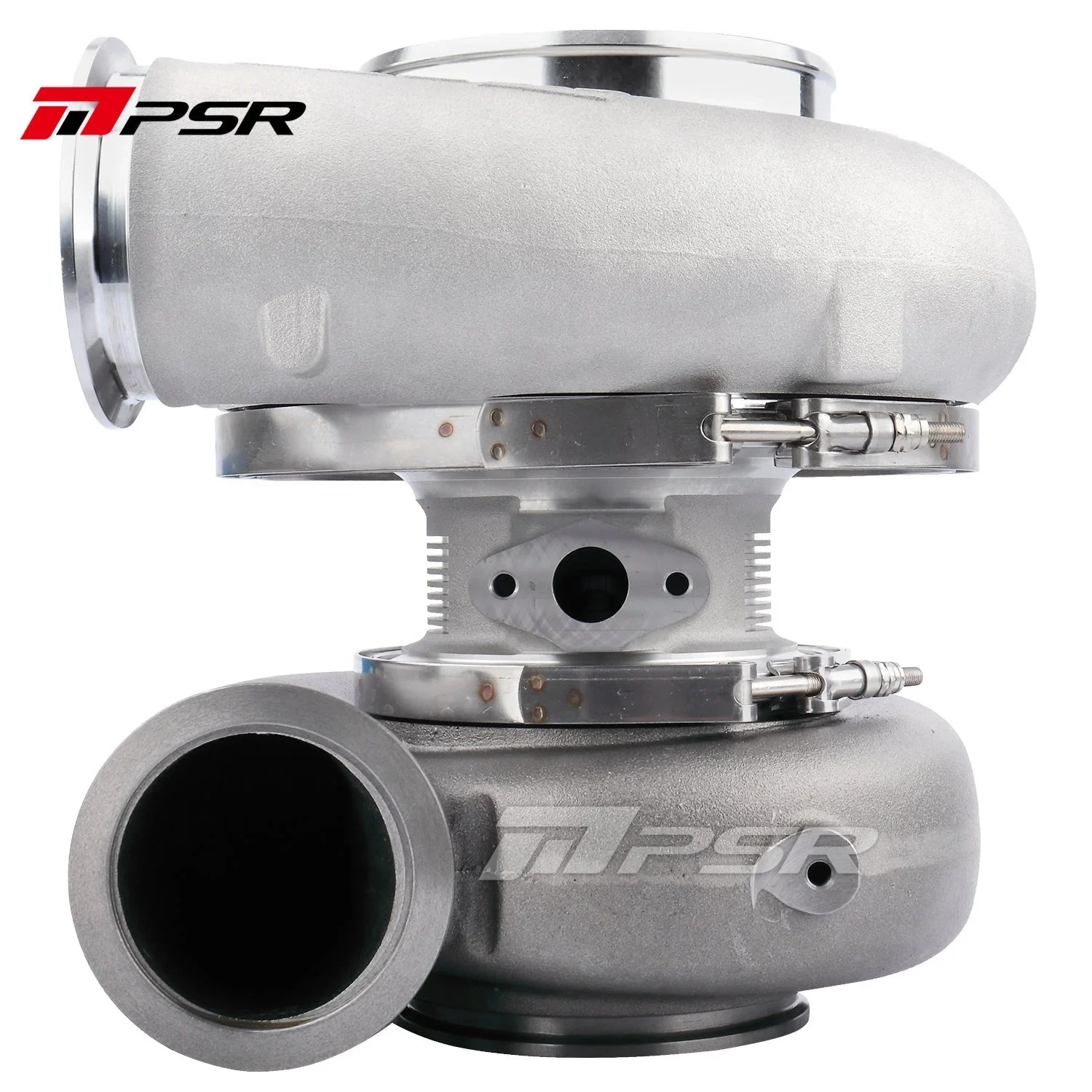

PSR PRO98 Compressor Inducer 2550HP 98mm Turbo

• Dual ceramic ball bearing system provides optimal turbo response &
  better durability by reducing the shaft-motion
• 13 Blade PTG-Aero billet compressor wheel 98mm inducer produces up to 2550 hp
• 9 Blade PTG-Aero Inconel 713c turbine wheel with more turbine flow
• Fin cooled aluminum center housing, lighter weight
• Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
• Outline interchangeable with GTX55 Gen II turbos
• Compressor Wheel: 98.4*133.5*142.4mm
• Turbine Wheel: 118*112mm
• Compressor Inlet: 6” Hose
• Compressor Outlet: 4” V-band
• Compressor Housing A/R: 0.96
• Turbine Inlet: 3.5” V-Band (DV Housings) or T6 Open
• Turbine Outlet: 4.5” V-Band
• Turbine Housing A/R: 1.09/1.25/1.41

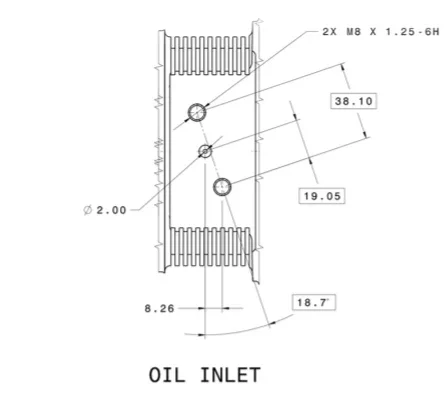

• Oil Feed: See graph below(OIL INLET) (an oil restrictor with ~1mm orifice is highly recommended)

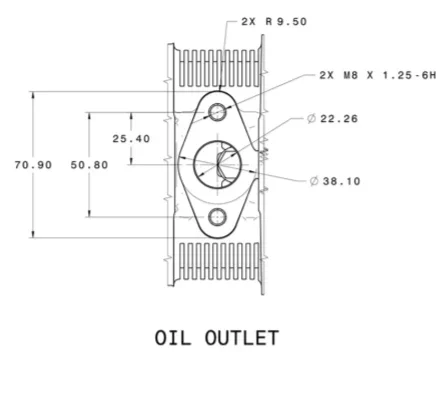

• Oil Drain: See graph below(OIL OUTLET)
