WRX 6SPD – DRAG SET (2007 ON) – OEM SHAFT

Description

2007 ON – GM 26-SPLINE INPUT SHAFT

6SPD 1ST-4TH DRAG SET VERSION 2

ALL WRX 6 SPEED PRODUCTS ARE BASED OFF THE STi GEARBOX

GEAR RATIOS

• 1st – 3.077
• 2nd – 1.875
• 3rd – 1.35
• 4th – 0.957

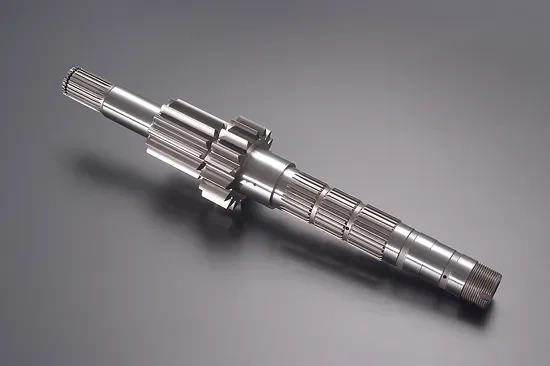

Include: Heavy Duty GM 26-Spline Input Shaft

Description

The PPG SU-6S4GV2DB-GA 1st-4th Drag Gear Set to suit the OEM Subaru 6 speed casing is a drag racing specific gear set only.

4-speed Drag racing gear set has been developed for SUBARU WRX STI 6 speed gearbox. It has a 26-spline 2-piece input shaft along with its dog-tooth profile and straight cut gears enables it to handle dramatic increases in power.

Also provides the benefit of retaining OEM 5th & 6th gears for when you need it

Design

The gear set has been designed to provide drivers with instant gear selection, clutch-less shifting and a perfect ratio combination that is matched to the final-drive, wheel and tyre sizes – qualities that make it ideal for Drag racing. However, before being offered for sale, the SU-6S4GV2DB-GA system was put through a rigorous test and development programme and then proven in live motorsport conditions to ensure it would cope with the extreme demands of this category of motorsport.

This set is the perfect drivetrain upgrade for manual transmission powered Subaru’s heading into the 7 second ET bracket

Drag racers who use Subaru’s – some of them running engines that produce well in excess of 1000hp!
